Hi all-

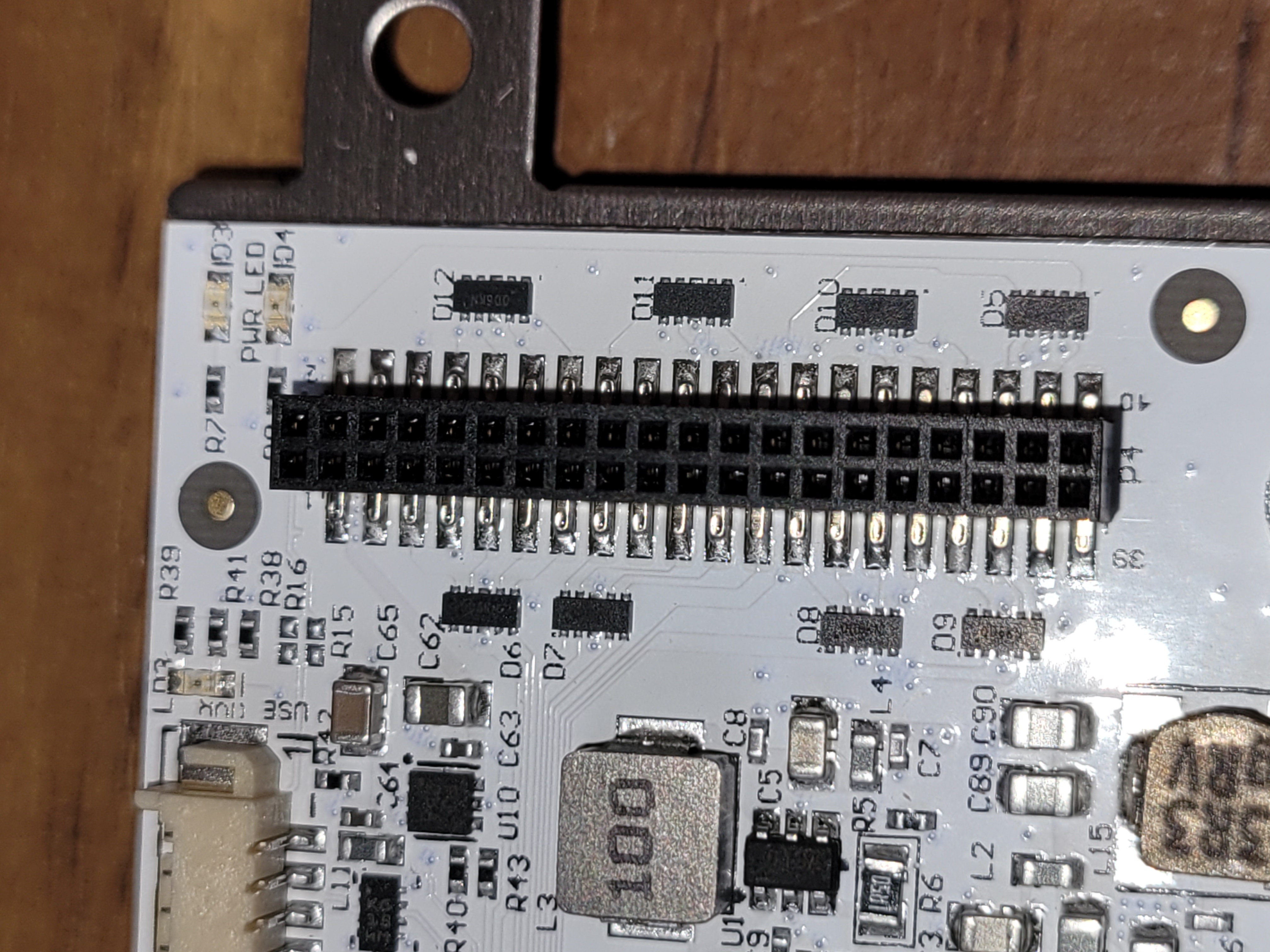

I'm stuck trying to find what should be a simple cable or connection. I'm
working with a development board that brings all of its I/O through a
female 40 pin IDC connector with 0.5mm pitch (see pic 1) and i need to
bring it out, preferably to a 0.1" pitch that i can work with. All im

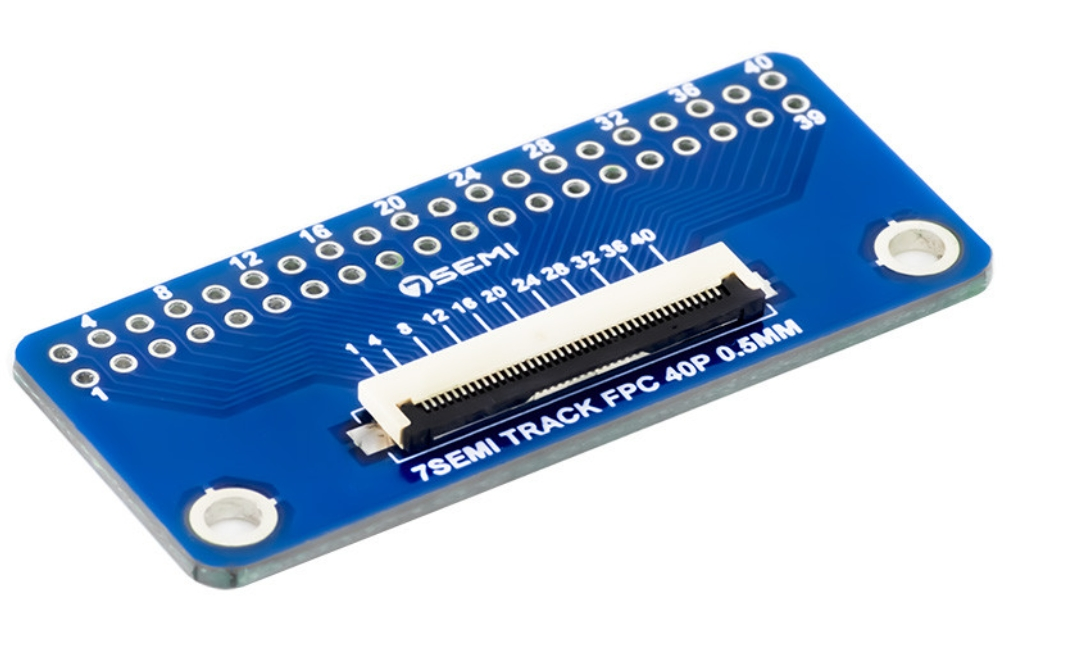

finding are cables designed for FFC /FPC zif connectors like the example
breakout board in the second pic (even Amazon stocks that kind of board).
Any pointers to that cable? Thanks in advance!

NOTE - THIS IS NOT A 0.1" SPACING CONNECTOR

Charles
